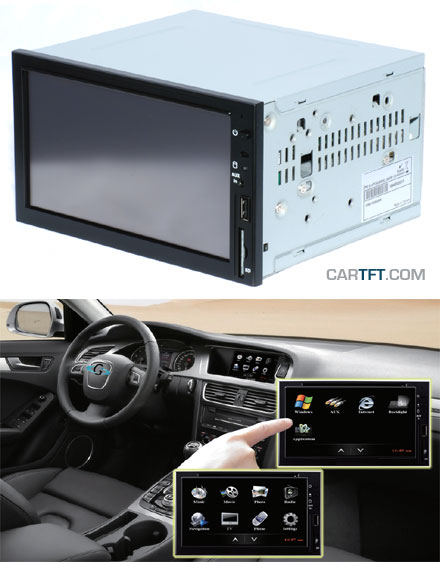

CTFDINPC-2 (V2) Double-DIN Car-PC Barebone (Intel Atom CPU, 2GB RAM, AM/FM Radio, Bluetooth, DVD, Mini-PCIe + SIM slot, CAN-BUS)
PRODUCT IS CURRENTLY NOT AVAILABLE !
Car-PC Barebone : Choose yourself : HDD/SSD and Operating system.
Update (19.12.2011) :
- CAN-BUS
- 2x Mini-PCIe slot
- SIM card slot
- 2GB RAM
- Intel Atom N270 CPU
Update (24.08.2010) : Now with integrated DVD Slot-In drive.
Many functions and features
The barebone is equipped with an Intel Atom CPU and 2GB RAM.
The 6.95" Touchscreen display enables comfortable control, the integrated Bluetooth receiver enables telephony using your cell phone. Several USB-connectors and a SD-card reader offer additional interfaces. The device has an integrated AM/FM Radio-receiver and the 4x35W am
[more]
RAM :
SSD (2.5"):
OS:
Build/Install:
SSD (2.5"):
OS:
Build/Install:
Car-PC Barebone : Choose yourself : HDD/SSD and Operating system.
Update (19.12.2011) :
- CAN-BUS
- 2x Mini-PCIe slot
- SIM card slot
- 2GB RAM
- Intel Atom N270 CPU
Update (24.08.2010) : Now with integrated DVD Slot-In drive.
Many functions and features
The barebone is equipped with an Intel Atom CPU and 2GB RAM.
The 6.95" Touchscreen display enables comfortable control, the integrated Bluetooth receiver enables telephony using your cell phone. Several USB-connectors and a SD-card reader offer additional interfaces. The device has an integrated AM/FM Radio-receiver and the 4x35W amplifier enables sound output to car speakers.
Perfect for mobile environment
The customized BIOS enables cold start to Windows XP Pro within only a few seconds (even faster from Stand-By). By connecting to ignition-plus-control line of your car the system will start and shutdown automatically. Additional displays, eg. for rear seats, can be connected to the seperate VGA output.
Features :
- Intel Atom CPU, 2GB RAM
- 6.95" Touchscreen display with LED backlight
- AM/FM Radio
- Amplifier (4x 35W) for direct connection to car speakers
- Bluetooth integrated (only for telephony)
- USB, SD-Reader in front
- Starts/Stops automatically based on ignition plus
- Fast Boot
- VGA-connector for additional displays
- 2x free internal Mini-PCIe slot
- DVD Slot-In drive
- CAN-BUS
- SIM Card Slot (You need a 3G-Mini-PCIe-modem in addition!)
Please login for creating product ratings.
from inte am 08.09.2010
from asterix007 am 22.02.2010
from hamid.nayer@electrolux.ch am 29.01.2010
1
2
Forward
Your rating:
Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating.
If you want you also can leave a comment.
Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And
you can benefit from reports other customers are giving.
In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters)
on your account. The credit will be substracted automatically on your next order !
We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders).
"Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.
|
Customer ratings:
Average rating, based on 6 ratings |
from inte am 08.09.2010
Läuft auf dem Teil MeeGo?
www.meego.com
<snip>
System Requirements
CPU: Intel Atom or Intel Core 2 CPU (support for SSSE3)
Note: MeeGo will not work on non-SSSE3 CPUs
Platforms with Nvidia or ATI graphics chipsets will run in unaccelerated Vesa mode
(...)
MeeGo v1.0 for IVI currently requires:
CPU: 32 bit Intel Atom or Intel Core 2 CPU (support for SSSE3)
Note: MeeGo will not work on non-SSSE3 CPUs
A compatible Intel graphics chipset.
Note: GMA-500, Nvidia, and ATI chipsets are not supported.
The targeted reference platform for MeeGo for IVI is based on an Atom Z530 processor and a US15W chipset. One of the officially supported boards is the ?Russellville? platform from the Congatec IVI Development Kit.
</snip>
Wäre wichtig zu wissen...
from asterix007 am 22.02.2010
hier gibt es einen treiber
damit der sound auch ohne Monsuta Läuft
http://forums.fluxmedia.net/all-one-systems/8081-ctfdinpc-2-radio.html#post63129
Fluxmedia Forum
from hamid.nayer@electrolux.ch am 29.01.2010
Someone know if the CTFDINPC-2 Double-DIN support the operating system Windows CE??
